HawkEye-20GigE Vision Dual-Port 10 GigE Frame Grabbing & Image Processing System
このオファーについて

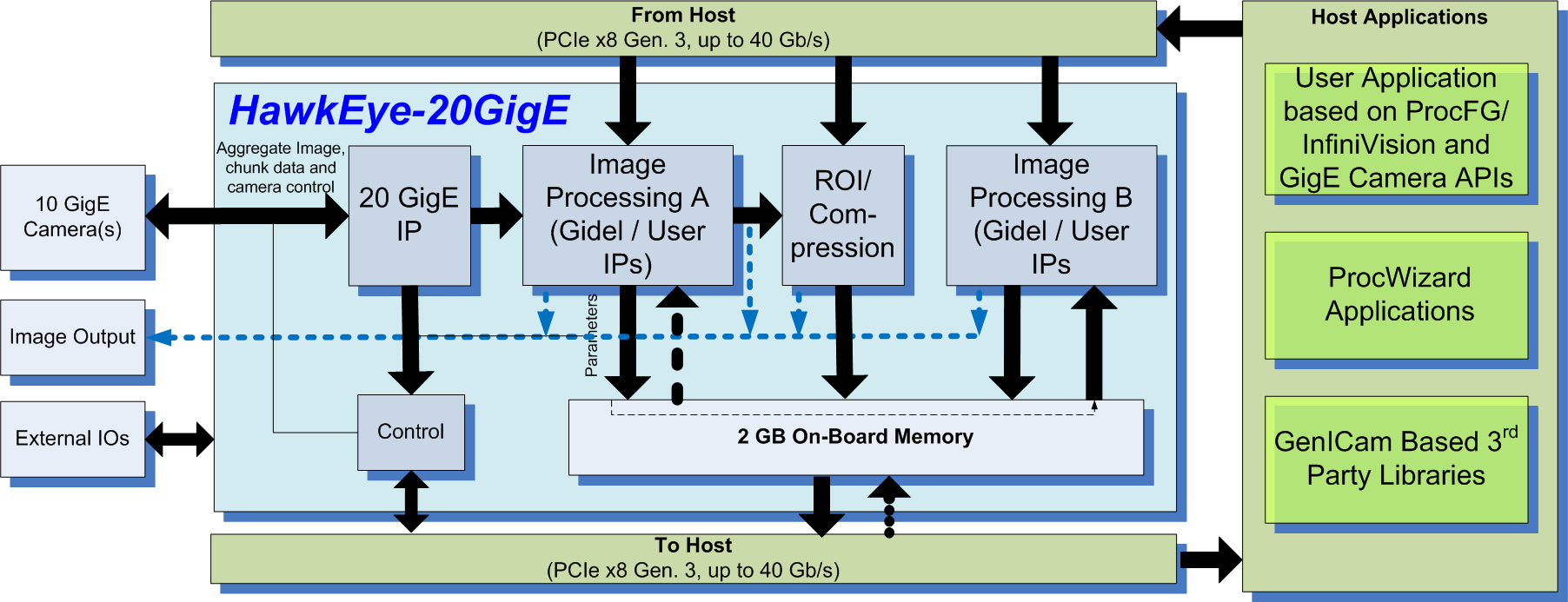

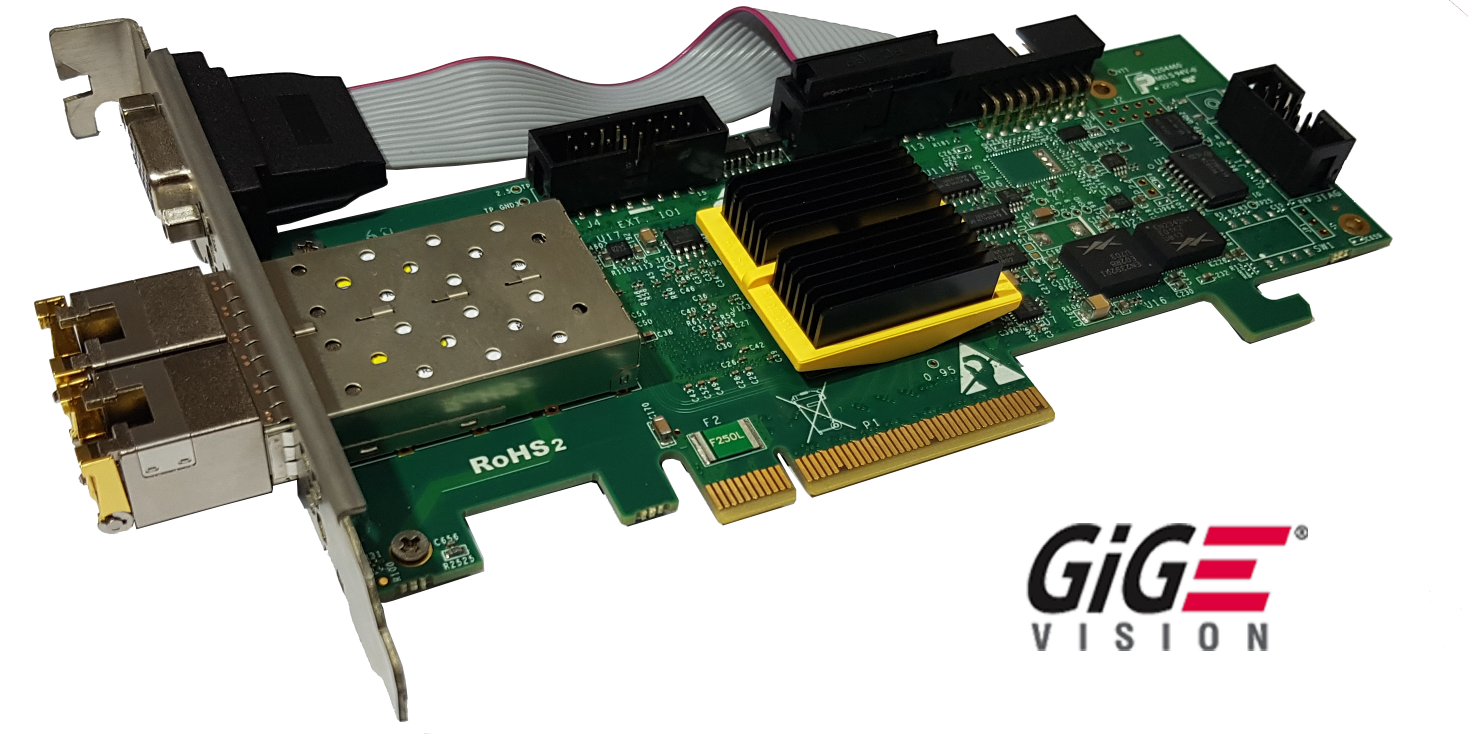

The Gidel HawkEye-20GigE frame grabbing and real-time image processing system offers true 10 GigE acquisition capabilities guaranteeing 100%frame capture with no frame loss. The board is supported by comprehensive system I/Os, ROI capture capability, multi-link aggregation and chunk data (payload type: 0x4001) transmission. The HawkEye-20GigE series offers a number of options to accommodate diverse application needs, from a plug-and-play high-performance frame grabber to a fully customized system solution comprising acquisition, FPGA image processing, real-time image compression, multi-camera synchronization and complex I/O system control. The HawkEye-20GigE has an acquisition bandwidth of 20 Gb/s via two SFP+ ports enabling grabbing from two 10 GigE cameras, multi-link cameras or multiple GigE cameras via a switch. The HawkEye-10GigE family is based on PCIe Gen. 3 x8, providing CPU-free ultra-fast offload bandwidth. The boards are supported by Gidel’s development tools, including the ProcVision Kit for tailoring, debugging and verifying the FPGA image processing and data flow, and the Proc Dev Kit for generating automatically the Application Support Packages (ASPs) and the environment FPGA code, including all board/IP constrains and user logic wrapper.
技術仕様
- カテゴリー:
- コンポーネント: FPGA ボード: COTS - 商用オフザシェルフ・ソリューション
- オペレーティング・システム:
-
Microsoft Windows Client* Windows 10 family*
Microsoft Windows Client* Windows 10 family* Windows 10, 64-bit*
Microsoft Windows Server* Windows Server 2012 family*
Microsoft Windows Server* Windows Server 2016 Family*
リソース
インテルのテクノロジーを含む
Gidel
技術的な問題の発生により、フォームを送信することができませんでした。しばらくしてから再度実行してください。ご不便をおかけすることをお詫び申し上げます。
Gidel
reCAPTCHA により、現在のやり取りがボットと同様のものであると特定されました。ページを再読み込みするか、しばらくしてから再実行してください。
Gidel は 1993年に設立され、インテル® FPGA ベースのハードウェアおよびソフトウェア製品を市場に提供し続けてきました。Gidel 製品は、HPC、イメージング-ビジョン、ATE などの多様な市場向けに最適化されています。Gidel の COTS ハードウェアは、堅牢で信頼性が高く、ISO 9001-2008 の品質で長期ライフサイクルを実現します。それはエンドユーザーのシステム要件を満たすためのカスタマイズを提供し、これらのシステムは、大規模な OEM 生産で使用されています。Gidel は、高性能なグラビングとリアルタイム処理に特化しており、市場最高の画像処理とビジョン・パフォーマンスを提供し続けています。
