LIN: LIN Bus Master/Slave Controller
このオファーについて

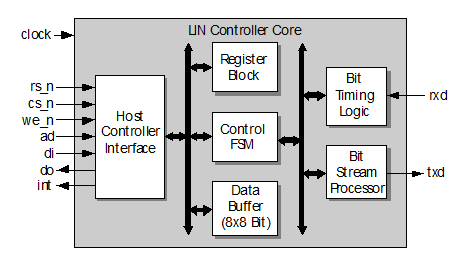

The LIN core is a communication controller that transmits and receives complete LIN frames to perform serial communication according to the LIN Protocol Specification. The LIN controller can be implemented as a master or as a slave and operate on LIN 1.3, 2.0, 2.1 or 2.2 LIN network. It uses a single master/multiple slave concept for message transfer between nodes of the LIN network. The message transfer can be controlled via a microcontroller interface and a LIN transceiver is needed for the connection to the LIN bus. The LIN core is available in two versions: Standard and Safety-Enhanced. The Safety-Enhanced version implements ECC for SRAMs protection and uses spatial redundancy for protecting the inner logic of the core. The Safety-Enhanced versions are certified as ISO- 26262 ASIL-D Ready. The robustly verified core has been production-proven multiple times.
技術仕様
- カテゴリー:
- ソフトウェアと IP コア: FPGA 知的財産コア: インターフェイス・プロトコル: 通信
- エンドカスタマーのタイプ:
-
中小規模のビジネス
その他
エンタープライズ
インテルのテクノロジーを含む
Arria® V FPGA & SoC FPGA
インテル® Agilex™ 7 FPGA & SoC FPGA
インテル® Arria® 10 FPGA & SoC FPGA
インテル® Stratix® 10 FPGA & SoC FPGA
インテル® Cyclone® 10 FPGA
Stratix® V FPGA
Cyclone® V FPGA & SoC FPGA
Cyclone® IV FPGA
Stratix® IV FPGA
