CamSim-CL- Camera Link Machine Simulator System
このオファーについて

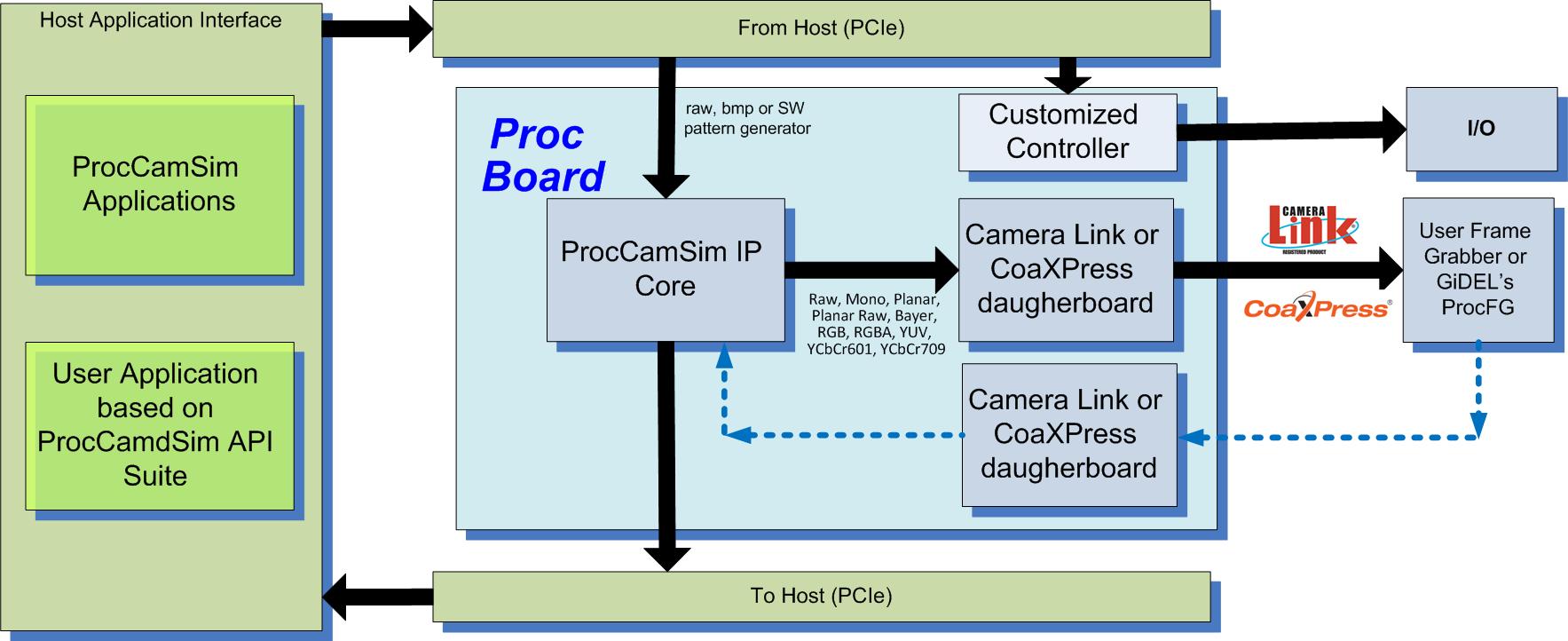

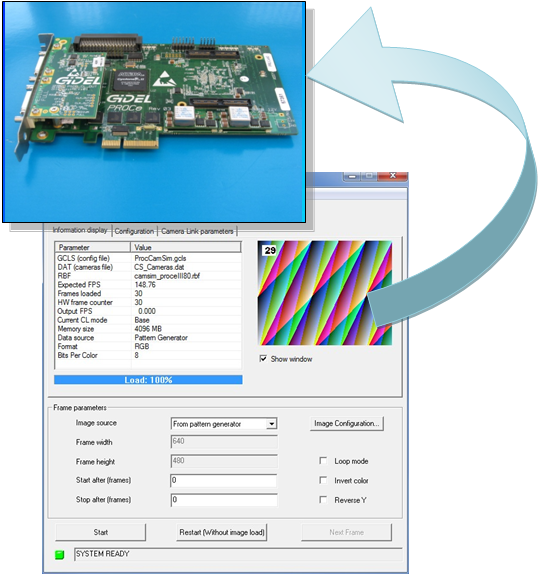

The Gidel CamSim™ is a flexible high-performance camera simulator that generates a camera link video stream and test patterns for testing frame grabbers or vision/imaging systems. The system supports all Camera Link™ specification v2.0 configurations and can be customized for any user-defined camera protocol and interface. The CamSim enables most development to be done in a low-cost lab environment. Thus, the CamSim significantly improves productivity and reduces the overall expense of developing vision and imaging systems. Gidel’s CamSim data flow repetition capability ensures that algorithms are validated and work as expected with pertinent input. Moreover, once the rare bug is detected, its respective data flow can be accurately reconstructed to locate the bug and quickly fix it. The CamSim suite includes: Application Software: An intuitive GUI enabling full control of the image simulation, including: transmitting image from user files or pattern generator files and configuring the camera link and timing parameters. API Methods: A set of CamSim API methods that can be used to develop a customized user application. Gidel PCIe Board: A PCIe FPGA board incorporating Gidel CamSim firmware for transmitting the image data.
技術仕様
- カテゴリー:
- コンポーネント: FPGA ボード: 開発キット
- エンドカスタマーのタイプ:
-
エンタープライズ
リソース
インテルのテクノロジーを含む
Gidel
技術的な問題の発生により、フォームを送信することができませんでした。しばらくしてから再度実行してください。ご不便をおかけすることをお詫び申し上げます。
Gidel
reCAPTCHA により、現在のやり取りがボットと同様のものであると特定されました。ページを再読み込みするか、しばらくしてから再実行してください。
Gidel は 1993年に設立され、インテル® FPGA ベースのハードウェアおよびソフトウェア製品を市場に提供し続けてきました。Gidel 製品は、HPC、イメージング-ビジョン、ATE などの多様な市場向けに最適化されています。Gidel の COTS ハードウェアは、堅牢で信頼性が高く、ISO 9001-2008 の品質で長期ライフサイクルを実現します。それはエンドユーザーのシ...
Camsim-cl- Camera Link Machine Simulator System
